Description

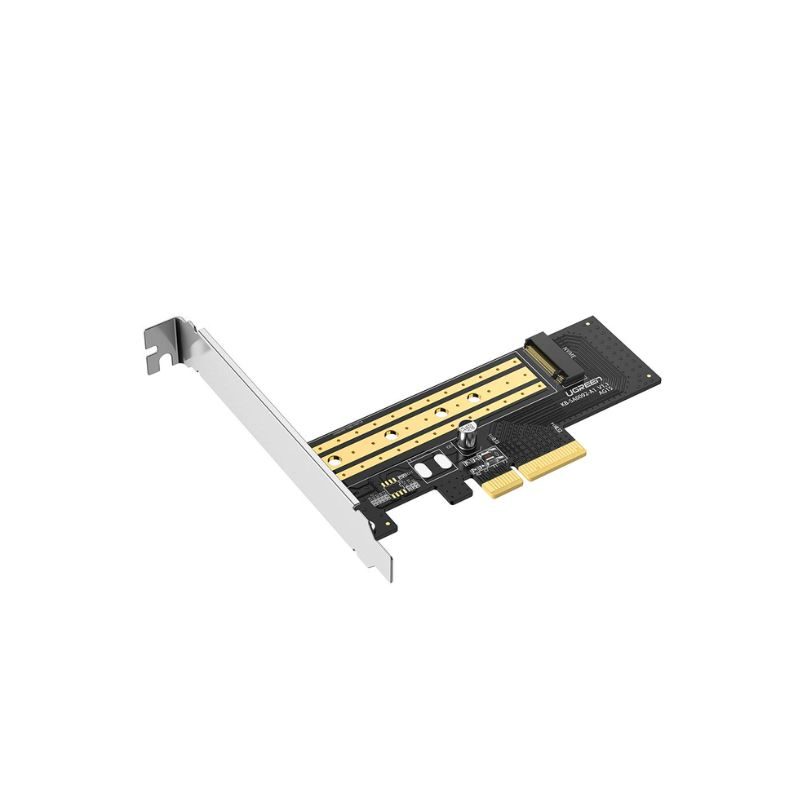

UGREEN M.2 NVME to PCI Express 3.0 x4 Adapter Card Specifications
Compatibility | PCIe 3.0 x4 NVMe (M-Key) SSDs, PCIe 3.0, 2.0, 1.0 motherboards |

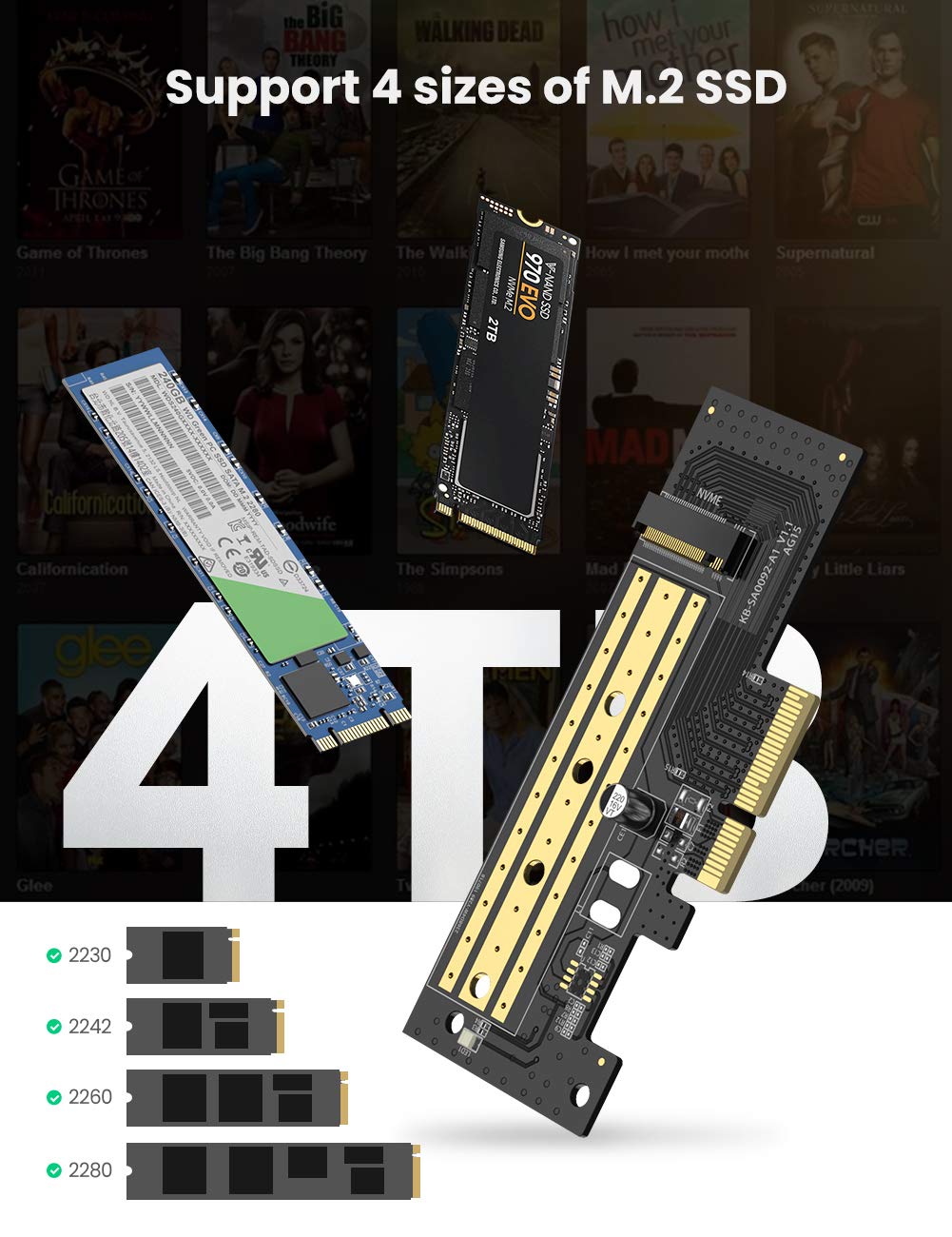

Supported SSD Sizes | 2230, 2242, 2260, 2280 M.2 NVMe SSD |
Maximum Data Transfer Speed | Up to 32Gbps |

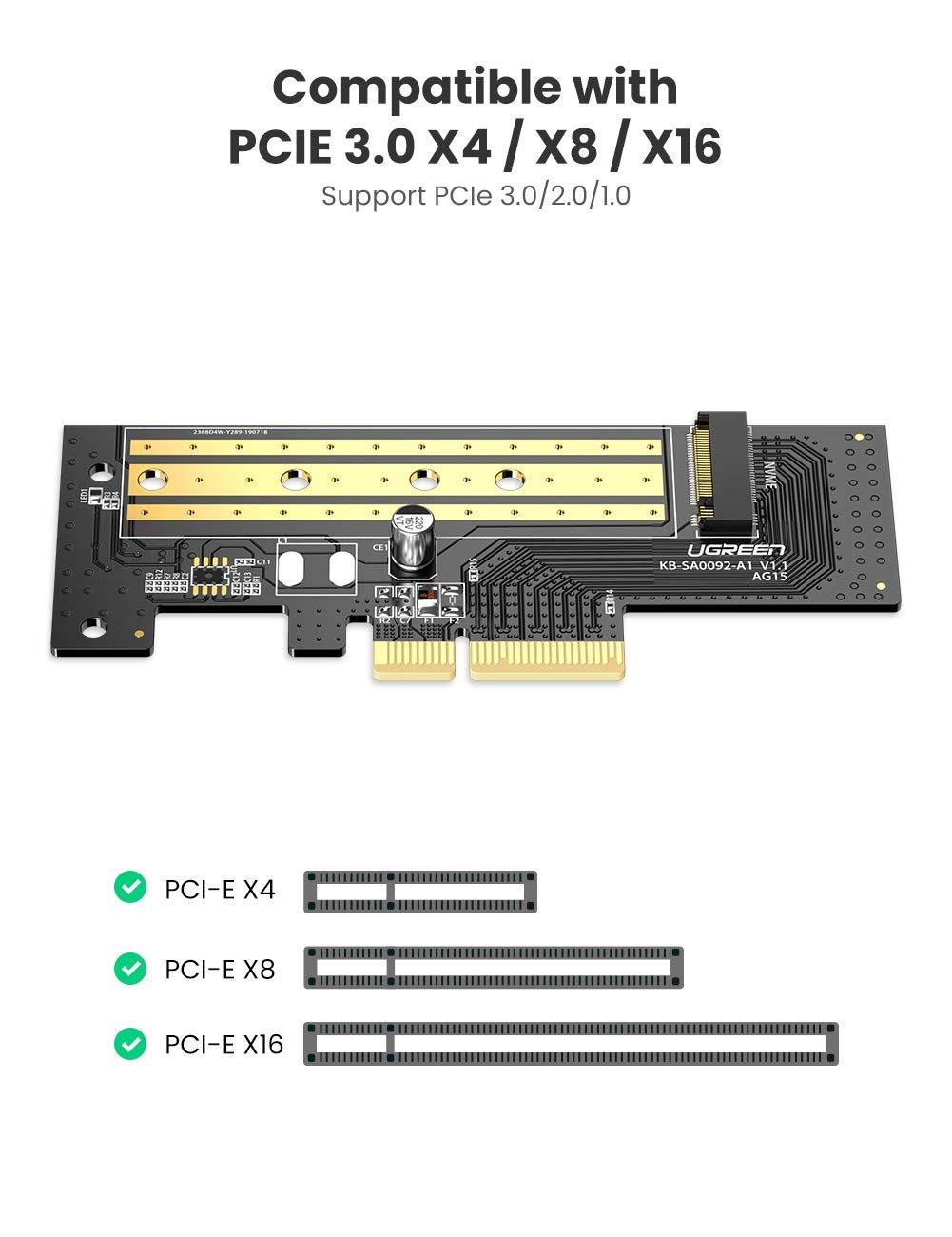

Supported Slots | PCI-E x4, x8, x16 |
Input/Output | Input: M.2 M-Key
Output: PCI-E 3.0 X4 |

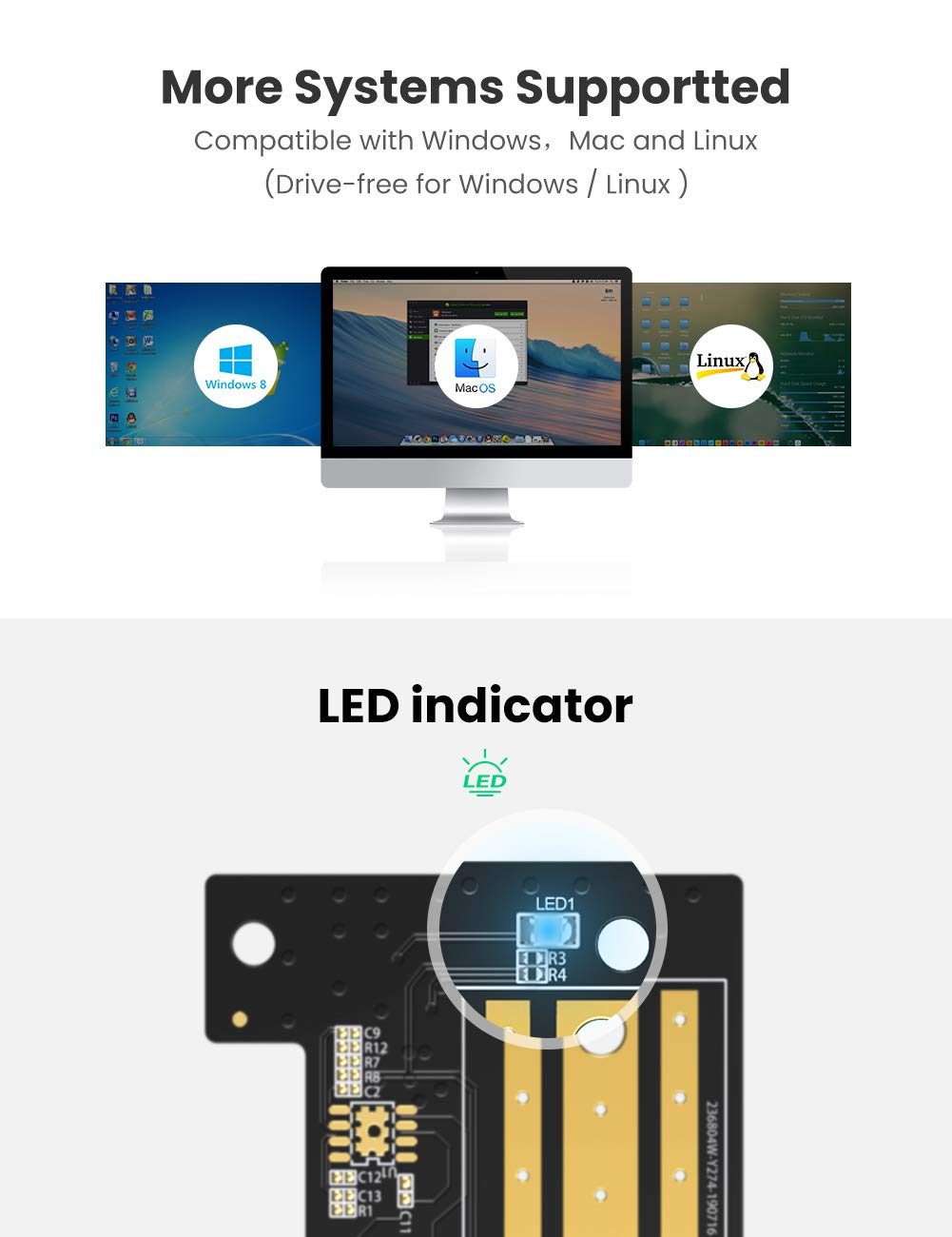

Operating Systems | Windows 10, 8.x, 7, Linux (driver support may be required) |

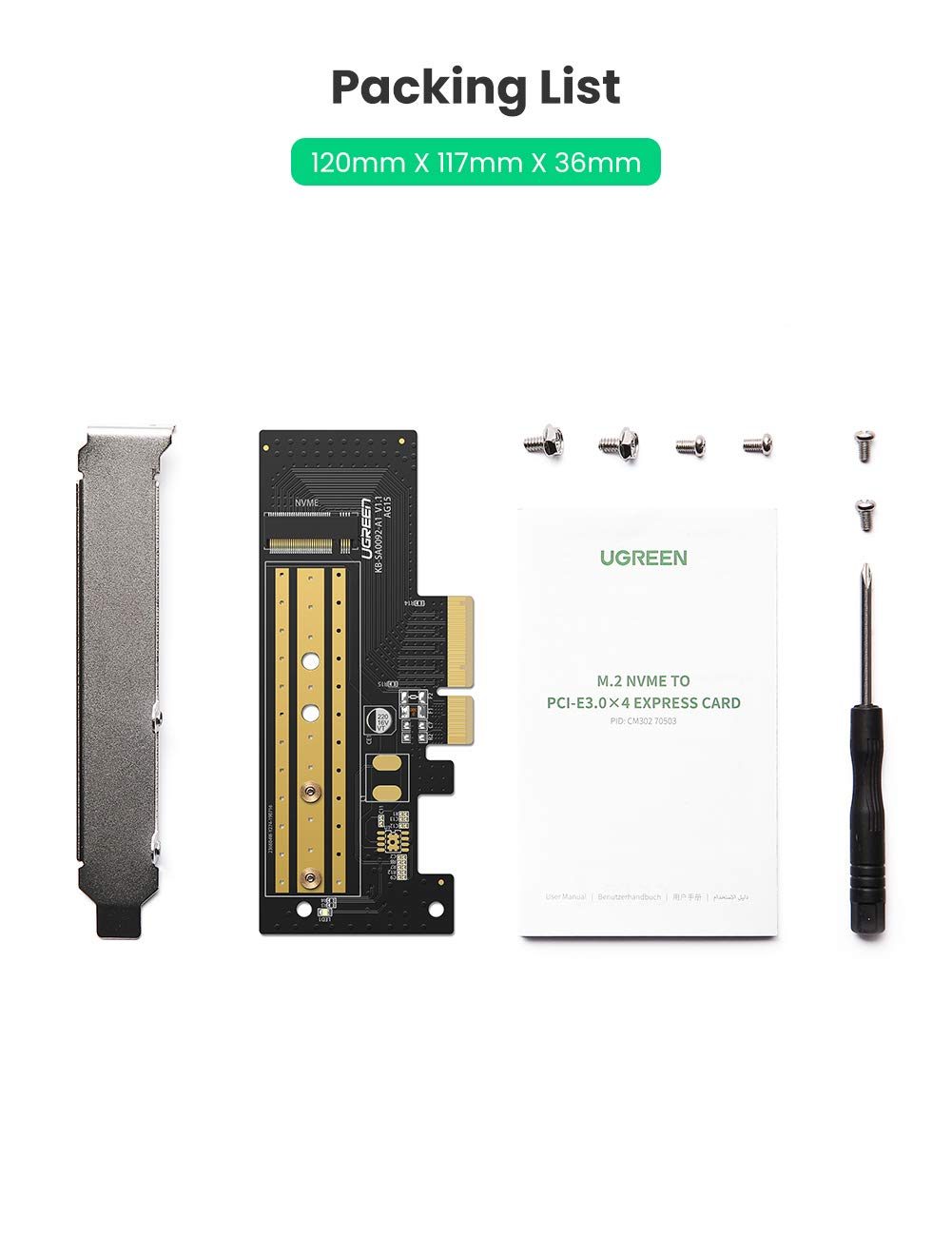

Included Brackets | Flat and full profile brackets for flexible installation |
Protection Features | Overcurrent, overvoltage, short-circuit, EMI protection |
PCI-E Bracket Length | 119mm |
PCB Dimension | L116.8 x W47mm |
System Compatibility | Supports popular NVMe SSD brands (e.g., Samsung, Kingston, Plextor) |
